Big pneumatic tire with carbon fiber spokes to provide the freedom for navigating the urban jungle with care free travel.
FEATURES

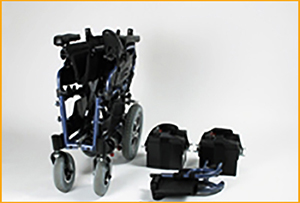

Foldable for Carefree Travel Simple and Easy Transportation. Swing-away and Detachable Footrests. ●Easily foldable for carefree travel! ●Can be easily placed in a car trunk, making outdoor travel with a power chair possible and simple.

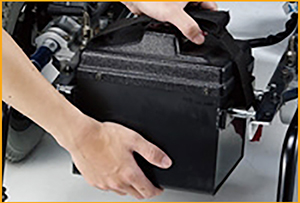

●Quick removable battery without requiring the use of any tools.

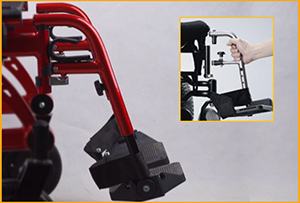

●In addition to footplates being height adjustable, the whole leg rests can be turned outward so the wheelchair can get closer to the destination for easier exit and entry.
●The footplate is fully adjustable to meet individual needs.
FUNCTIONS
_________________________________________________________________________________________________________________________________________________________________
Drop Back Handle For packing size small and easy storage
 |

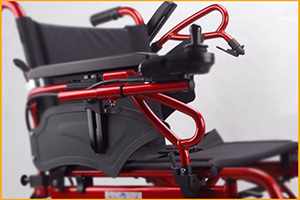

Flip-up Armrest Multidirectional adjustable flip-up armrest offers ergonomic comfort. The armrests can be flip up back to let you sit closer to tables, and also easier lateral. Flip-up and multiple adjustment armrest. |
 |
Rigidity Reinforce double cross brace. |
SPECIFICATIONS
_______________________________________________________________________________________________________________________________________________________
|
BW22029 |
Speed |
1~6 km per hour |
Ranges |
22~25 km |
Charging Time |
7~8 hours |
Mini Turning Radius |
500 mm |
Charger |
100-240W 15A 50-60HZ |
Control |
35A |
Motor |
2x24 V 200W |
Battery |
2 pcs 12 V 35 AH Acid |
Unit Weight (include battery) |
45.4 kg |
Weight Capacity |
115 kg |
Obstacle Height |
5 cm |
Seat W*D*H |
46x40x50 cm |
Footrest Length |
40~53 cm |
Arm Height |
25 cm |
Back Height |
43 cm |
Overall L*W*H |
115x62x97 cm |
Folded Width |
41 cm |
ACCESSORIES & OPTIONS
__________________________________________________________________________________________________________________________________________________
 |
 |
 |
 |
Angle & Height Adjustable Headrest |

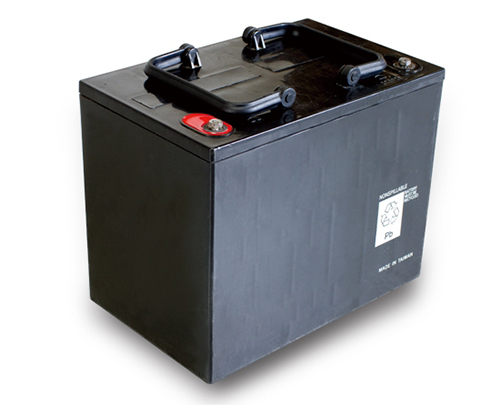

Dynamic Linx LE | Sealed Lead Acid Battery |
Taiwan Made Motor |
Next:Highly configurable power standing up wheelchair
Optimized for outdoor and indoor use, Suit for for Thoracic and Cervical spinal cord injury/Muscular Atrophied, Pressure relief. Full control by Exceptional Capability. Tilt-in-space for pressure relief and Comfortable sit.
Suitable for absence of orthostatic hypotension, abnormal reflex. Also is suit for non-obstructed hip joint and stable lower extremities and good bone status. The footrest,armrest and backrest move in a coordinated way simultaneously, so user will not feel the muscle pull when changing from sitting to standing position.
The lightweight transfer wheelchair is extremely space saving and storage in the car easily.
Highlights: 1. Safer Steering hand bar with tie-rod system. 2. Better Braking Effect of drum brake 3. 12 inch Puncture Free Tire 4. Basket replaced by shopping bag
