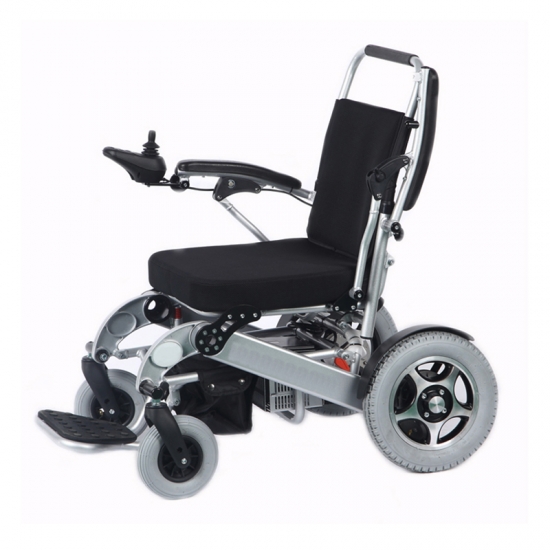

The BW22023 benefits from our past experiences and close attention to customer need. The model is compact, agile, and capable, making it a perfect candidate.
This lightest power wheelchar is perfect for both indoor and outdoor use, the mid wheel drive allows the chair to have an improved center of gravity, while the front and rear wheels create the perfect balance for the user while engaging on changing surfaces.
The footrest,armrest and backrest move in a coordinated way simultaneously, so user will not feel the muscle pull when changing from sitting to standing position.
FEATURES

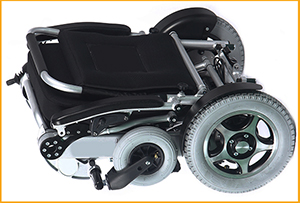

Folds and Opens in Just 5 Second Under Seat Storage Bag High Performance Polymer Li-ion Battery l Bundle with an exclusive tough transport bag for easy traveling.Bring your wheelchair with you on your next trip! l Detachable seat cushion and backrest for washing purposes. l Operates 15 km (9 miles) with 1 standard battery,and it can carries up to 3 batteries for 45 km (27 miles).
FUNCTIONS
________________________________________________________________________________________________________________________________________________________________________

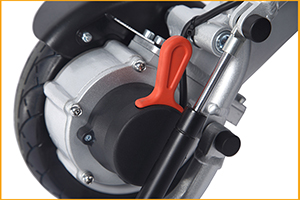

Switch from electric to manual
 |

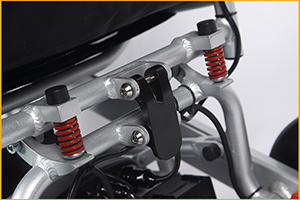

Shock absorption device Intelligent wave seat design close buns,give much comfort during standing process, strip by strip can anti bedsore for people longtime seating in a wheelchair. |
 |

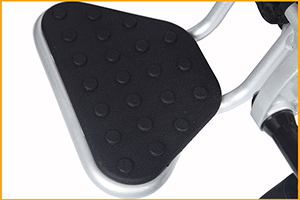

Durable footrest with detachable plate High performance rear-wheel drive with continuous acceleration. |
SPECIFICATIONS
______________________________________________________________________________________________________________________________________________________________________
|
|
BW22024 |
| Speed |
1~7km per hour |
| Drive Train |
Two Motors,rear wheel drive |
| Charging Time |
4 hours |
| Max Distance/Full Charge |
15 km with 1 battery ( 15% less in cold weather) |
| 30 km (18 miles) with optional 2nd battery |
|
| 45 km (27 miles) with optional 3rd battery |
|
| Slope Capability (with anti-tilt support) |
9° |
| Battery Type |
Polymer Lithium lon Battery |
| Motor Type |
250 W x 2units Lastest Brushless Motor |
| Frame Material |
Aircraft Quality Aluminum Alloy |
| Backrest Push Handler |
Height Adjust |
| Maximum Seat Capacity |
160 kg |
| Unit Weight |
25 kg |
| Seat （W*D*H） | 48.25x45.5x57 cm |
| Folded Size（L*H*W） |
33x74x64 cm |
| Opened Size （L*H*W） |
100x90.5x64 cm |
| Arm Height |
25 cm |
| Back Height |
43.5 cm |
| Overall (L*H*W) |
100x90.5x64 cm |
ACCESSORIES & OPTIONS
PG control
Taiwan Made Motor

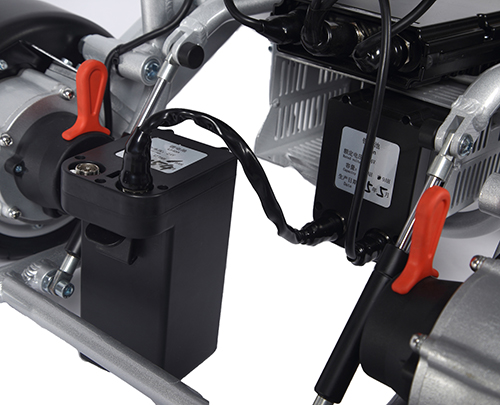

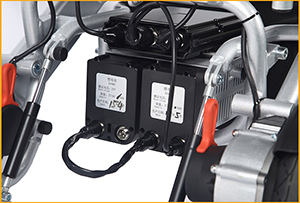

Polymer Li-ion Battery
