Suitable for Thoracic and Cervical Spinal Cord Injured.

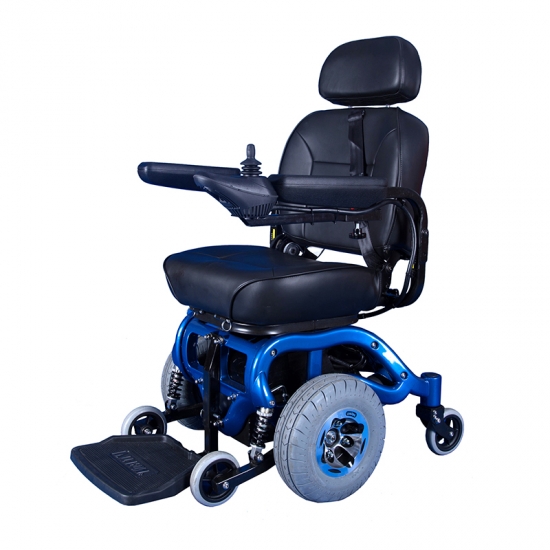

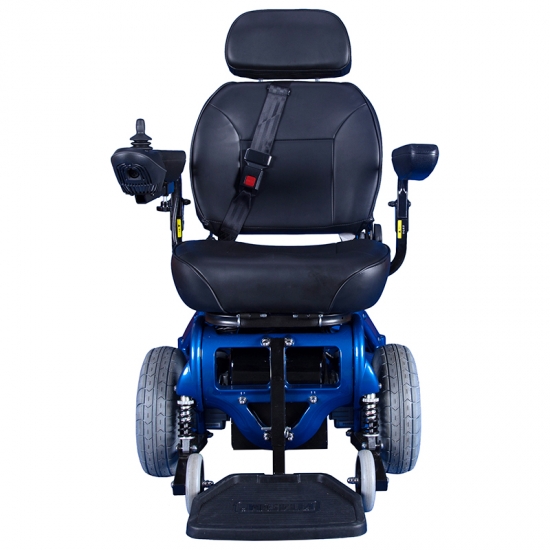

The BW22011 Electric Wheelchair is designed for both indoor and outdoor use; optimized for medium distance travel and pressure relief.
With a small turning radius, can freely navigate around the house.
This BW22011 heavy duty wheelchair is perfect for both indoor and outdoor use, It is a superior power wheelchair for even the most active users.
Rear wheels driving,small turning radius and save turning space,fit for indoor use.
A narrow width of just 60 cm makes it navigate through doorways, into lifts and move around easily in confined spaces.
It includes a six-wheel independent suspension and a power motor for offering superior handling over rough terrain with ease.
FEATURES

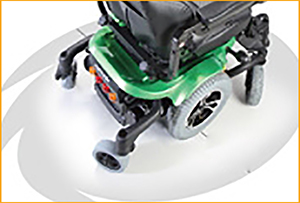

Smooth, stable and safe Mid-wheel design for easy indoor turn around l When the road shock is precisely absorbed, the ridding becomes so much stable, comfortable, and enjoyable. l The six-wheel independent suspension ensures a smooth and stable drive while riding on rough terrain. l This design sets a record for its class with the smallest turning radius of only 67 cm. Overcoming limitations of narrow or restricted spaces, it expands your reach.

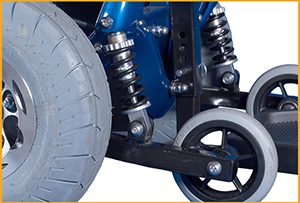

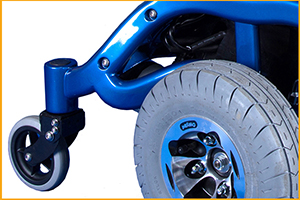

Rear wheel suspension
FUNCTIONS
________________________________________________________________________________________________________________________________________________________________________

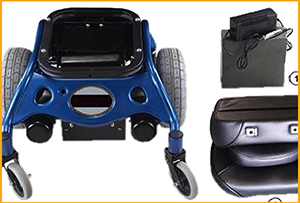

With detachable seat,Disassembly and assembly are simple,Can be easily placed in a car trunk, making outdoor travel with a power chair possible and simple.
Detachable Seat and Foldable for Travel
 |

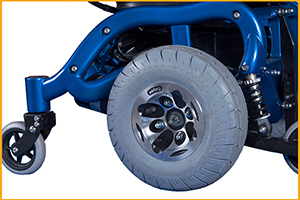

Middle Driving Wheel High performance rear-wheel drive with continuous acceleration. |
 |

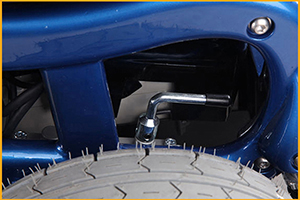

Switch for Electromagnetic Brake |
 |
Tie-down bracket for added safety Designed for use when traveling in mass transit; allows for safer use, provides stability, and prevents slipping. |
 |

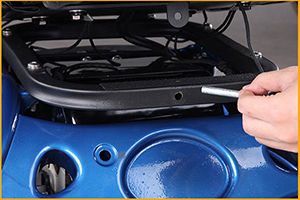

Pin for Quick Release Seat |
SPECIFICATIONS
______________________________________________________________________________________________________________________________________________________________________
|
|
BW22011 |
| Speed |
0~6km per hour |
| Endurance |
35 km |
| Continue Walking Time |
5 hours |
| Drive Way |
The middle wheel drive |
| The Brake Way | Electromagnetic brake |
| Maximum Gradability | 12 degrees |
| Liquid Crystal Display Panel |
5 " x 2 PU tyre |
| The Controller |
PG |
| The Motor |
270 W x 2,Taiwan Made |
| Charger |
DC24V/6A AC 110-250 V |
| The Battery |
12V 35AH x 2 （Lead-acid battery) |
| Load Weight |
150 kg |
| Weight (Exclude battery) |
75 kg |
| Size of Product (L*W*H) | 76 x 60 x 95 cm |
| The Front Wheels |
4" x 2, PU solid tyre |
| The Rear Wheels |
12" x 4" x 2, inflatable round |
ACCESSORIES & OPTIONS
______________________________________________________________________________________________________________________________________________________________________
Motor with high efficiency performance
PG control

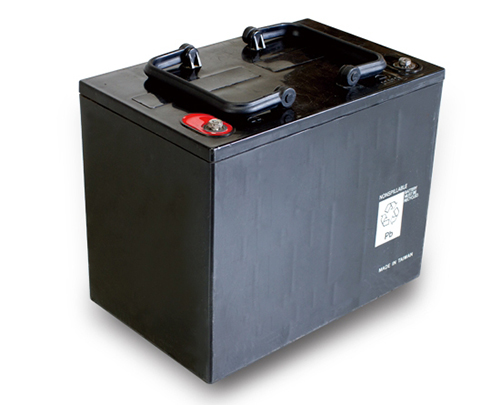

Lead-acid battery
