Do you wish to have a power wheelchair that can be folded and placed in a car trunk?

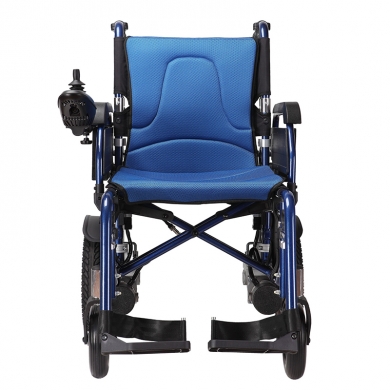

To meet your needs, the BW22033 ,Foldable Manual Electric Wheelchair,Ideal for indoor and outdoor daily use, perfect for medium size distance travel,
Features a revolutionary design that includes foldable frames, making the wheelchair quite portable that you bring with you wherever you go.
Big pneumatic tire with carbon fiber spokes to provide the freedom for navigating the urban jungle with care free travel.
FEATURES

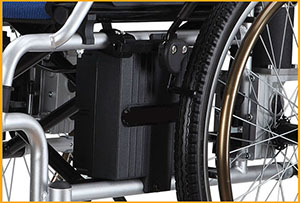

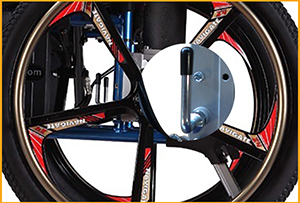

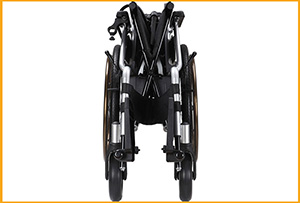

Divided Battery Mounted on Both Sides Folding Easily Can Switch to Manual Wheelchair l Make the chair foldable, just pull up the seat, no need remove the battery. l Old design places battery under the seat, which can not realize folding the chair. l Reduce the storage space, foldable frame and foldable backrest makes this chair very small. l It can put into a car trunk for travel. l This wheelchair can be a manual wheelchair, just switch a handle to another direction. l So we never worry about running out of battery.
FUNCTIONS
________________________________________________________________________________________________________________________________________________________________________

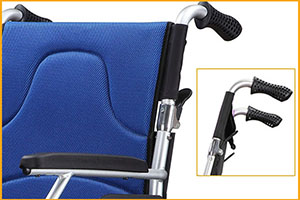

Drop Back Handle
 |

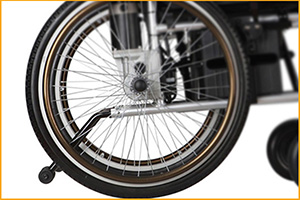

Anti-backward wheels Permits slight backward tilt and recline while travelling downhill for improved safety. |
 |

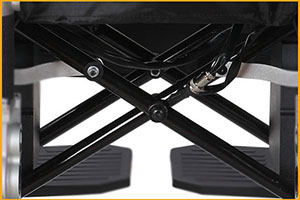

Rigidity Reinforce double cross brace. |
 |

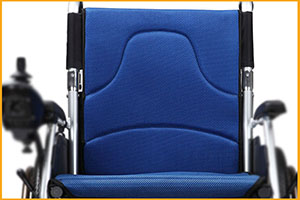

Detachable Seat and Back with Pocket Padded and soft seat and back, ventilate, better to long seating people. |
SPECIFICATIONS
_______________________________________________________________________________________________________________________________________________________________________
|
BW22033 |
Speed |
1~6 km per hour |
Ranges |
12 km |
Charging Time |
7~8 hours |
Mini Turning Radius |
500 mm |
Charger |
100-240W 15A 50-60HZ |
Control |
35A |
Motor |
2x24V 200W,Taiwan Made |
Battery |
2pcs 12V 16AH Battery |
Unit Weight (include battery) |
34.89 kg |
Weight Capacity |
115 kg |
Obstacle Height |
5 |
Seat W*D*H |
45x45x50 cm |
Footrest Length |
40~53 cm |
Arm Height |
25 cm |
Back Height |
43 cm |
Overall L*W*H |
114x63x92.5 cm |
Folded Width |
33.5 cm |
ACCESSORIES & OPTIONS
_______________________________________________________________________________________________________________________________________________________________________
 |
 |
 |
 |
Angle & Height Adjustable Headrest |
LiberatMotion control | Sealed Lead Acid Battery |
Taiwan Made Motor |
Next:Travel portable folding power electric wheelchair
The Folding electric wheelchair was ideal for indoor and outdoor daily use, perfect for medium size distance travel. Features a revolutionary design that includes foldable frames, making the wheelchair quite portable that you bring with you wherever you go.
Length: 90cm Width: 45cm Height: 72-113cm Over the bed table with large height adjustable top,can be raised with just 1 finger by simply pushing the table top upwards. It also can be made of plastic according to your preference and needs.
Suit for wheelchair-assisted employees/first time electric wheelchair users. High efficiency motor and 200x50 mm PU front wheel and 24 inch pneumatic tyres rear wheels provide users with full control and great maneuverability, this lightweight power wheelchair making overcoming outdoor slope and gaps effortless.
