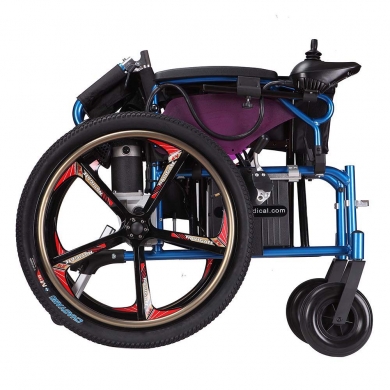

Do you wish to have a portable power wheelchair that can be folded and placed in a car trunk?
To meet your needs, the travel electric wheelchair ( BW22028 ) features a revolutionary design that includes foldable frames, making the wheelchair quite portable that you bring with you wherever you go.
Ideal for indoor and outdoor daily use, perfect for medium size distance travel.
Big pneumatic tire with carbon fiber spokes to provide the freedom for navigating the urban jungle with care free travel.
Frame is designed to match two types battery, gel battery and lithium battery.
BW22028 B Lithium battery, PG control
FEATURES

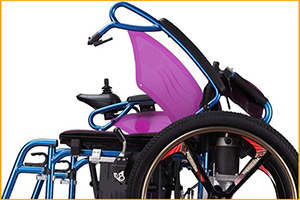

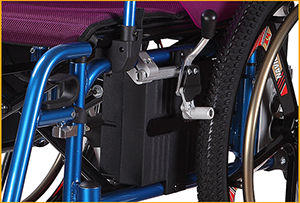

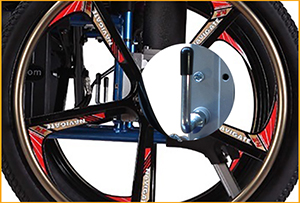

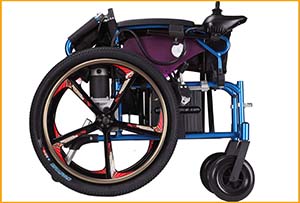

Divided Battery Mounted on Both Sides Foldable Backrest Can Switch to Manual Wheelchair l Make the chair foldable, just pull up the seat, no need remove the battery. l Old design places battery under the seat, which can not realize folding the chair. l Reduce the storage space, foldable frame and foldable backrest makes this chair very small. l It can put into a car trunk for travel. l This wheelchair can be a manual wheelchair,just switch a handle to another direction. l So we never worry about running out of battery.
FUNCTIONS
________________________________________________________________________________________________________________________________________________________________________

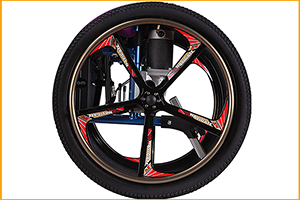

Mountain Tyre with Magnesium Integrated Molding Inner Ring This tyre wide and big with deep patterns, make you feel more comfortable when going on rough road,
Flip-up Armrest
The armrests can be flip up back to let you sit closer to tables, and also easier lateral.
 |

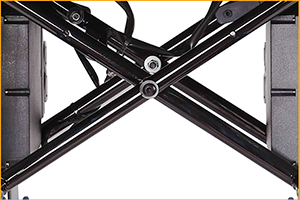

Rigidity Reinforce double cross brace. |
 |

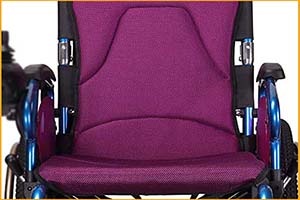

Detachable Seat and Back with Pocket Padded and soft seat and back, ventilate, better to long seating people. |
SPECIFICATIONS
_______________________________________________________________________________________________________________________________________________________________________
|
BW22028A |
BW22028B |
Speed |
1~6km per hour |
1~6km per hour |
Ranges |
22~25km |
15km |
Charging Time |
7~8 hours |
7~8 hours |
Mini Turning Radius |
500mm |
500mm |
Charger |
100-240W 15A 50-60HZ |
100-240W 15A 50-60HZ |
Control |
35A |
35A |
Motor |
2x24V 200W |
2x24V 200W |
Battery |
2pcs 12V 16AH Acid |
2pcs 12V 8AH Li |
Unit Weight (include battery) |
45.4kg |
35kg |
Weight Capacity |
115kg |
115kg |
Obstacle Height (cm) |
5 |
5 |
Seat W*D*H (cm) |
46x40x50 |
46x40x50 |
Footrest Length (cm) |
40~53 |
40~53 |
Arm Height (cm) |
25 |
25 |
Back Height (cm) |
43 |
43 |
Overall L*W*H (cm) |
115x62x97 |
115x62x97 |
Folded Width (cm) |
41 |
41 |
ACCESSORIES & OPTIONS
 |
 |
 |
 |
Angle & Height Adjustable |
LiberatMotion control | Sealed Lead Acid Battery |
Taiwan Made Motor |
